PRESSURE REDUCING CONTROL VALVE
PN10/PN16 - HRK-8500 - DN50 - DN300
Applications
Hot and cold water systems, non-acidic and non-flammable liquid fluids.
Standards

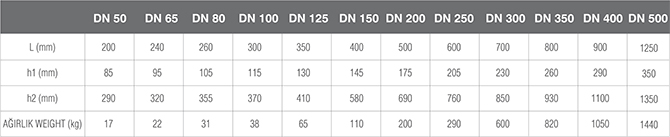

Face to face dimensions : EN 558 SERI 48
Flange Dimensions : EN 1092 - 2
Part Name   Material
Body : Ductile Iron, GJS-400.15 / GJS-500.7, EN 1563 (GGG40 – 50, DIN 1693)
Bonnet : Ductile Iron, GJS-400.15 / GJS-500.7, EN 1563 (GGG40 – 50, DIN 1693)
Diaphragm
: Neoprene Court Fabric Rubber
Needle Valve : Ms 58 Forging
Pilot Valve
: Ms 58 Forging
Gasket : Epdm/Nbr
Coating
: Epoxy
